Design and strength check of worm gear
|
MITCalc - Worm Gear Calculation 1.13
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $36.00
|
|
|
|
|
|

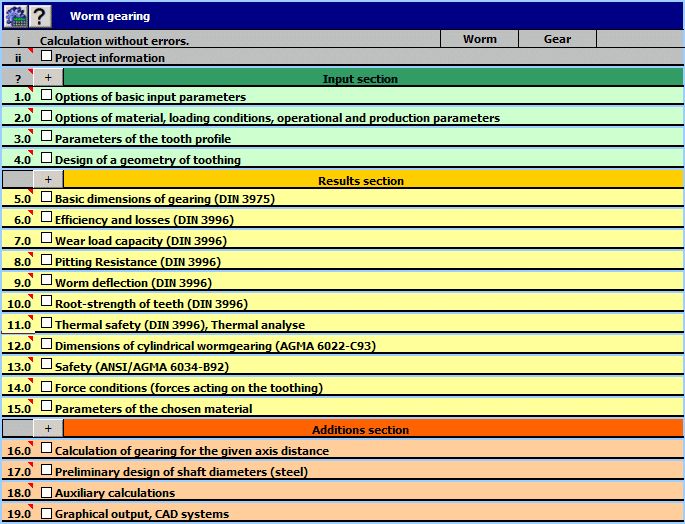

Geometric design and strength check of worm gear. Application is developed in MS Excel, is multi-language and supports Imperial and Metric units and solves the following main tasks:
- Calculation of gearing dimensions.
- Automatic transmission design with minimum input requirements.
- Design for safety coefficients entered.
- Calculation of a table of proper solutions.
- Calculation of complete geometrical parameters.
- Calculation of strength parameters, safety check.
- Gearing design for precise centre-line distance.
- Auxiliary calculations (heating, shaft design).
- Support of 2D and 3D CAD systems.
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E). The calculations use procedures,
algorithms and data from standards ANSI, ISO, DIN, BS and specialized literature. Used standards: ANSI/AGMA 6022-C93 (Revision of AGMA 341.02), ANSI/AGMA 6034-B92 (Revision of ANSI/AGMA 6034-A87), DIN 3996, DIN 3975-1, DIN 3975-2 and others. This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others
|
