Design of tension cylindrical springs
|
MITCalc - Tension Springs 1.17
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / WinME / Windows Vista Starter / Wind
Price: $28.00
|
|
|
|
|
|

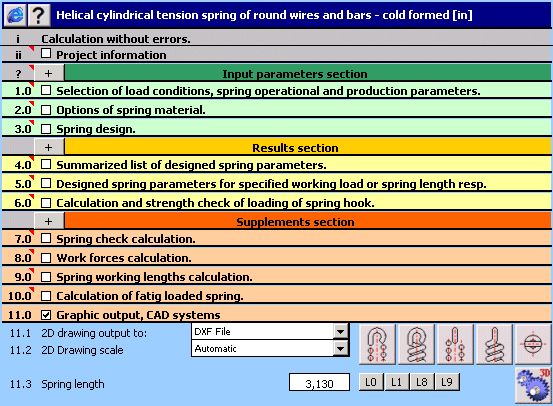

The calculation is intended for the purposes of geometric and strength designs of helical tension cylindrical springs
made of wires and rods of circular sections, loaded with static loading. . Application is developed in MS
Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks:
- Automatic design of the spring.
- Selection of an optimal alternative of the spring design in view of strength, geometry and weight.
- Strength check of the spring.
- Support for Cold formed springs and Hot formed springs
- Calculation of working forces of a spring of known production and mounting dimensions.
- Calculation of mounting dimensions for a known loading and production parameters of the spring.
- The application includes a table of commonly used spring materials according to ISO, ASTM/SAE, DIN, BS, JIS
and others.
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
The calculation is based on data, procedures and algorithms from specialized literature and standards EN 13906-2,
DIN 2089-2, DIN 2097.This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear,
belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
|
Free MITCalc - Tension Springs download - 1.72 MbMITCalcSprTens01.exe
|
