Design of torsion cylindrical springs
|
MITCalc - Torsion Springs 1.17
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $27.00
|
|
|
|
|
|

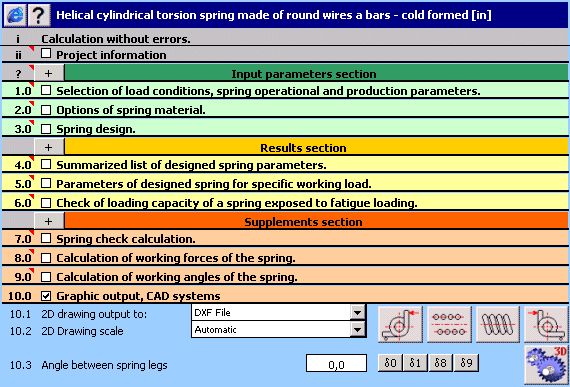

The calculation is intended for the purposes of geometric and strength designs of spiral cylindrical torsion springs
made of wires and rods in circular sections, cold formed, loaded with a static or cyclic loading. Application is
developed in MS Excel, is multi-language and supports Imperial and Metric units and solves the following main
tasks:
- Automatic design of the spring.
- Selection of the optimal design of the spring with respect to strength, geometry and weight.
- Static and dynamic strength tests.
- Support for Cold formed springs and Hot formed springs
- Calculation of the working forces of a spring with known production and mounting dimensions.
- Calculation of mounting dimensions for known spring loading and production parameters.
- The application includes a table of commonly used spring materials according to ISO, ASTM/SAE, DIN, BS, JIS
and others.
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
The calculation is based on data, procedures and algorithms from specialized literature and the standards EN
13906-2, and DIN 2088.This module is a part of MITCalc - Mechanical and Technical Calculation Package for
gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
|
Free MITCalc - Torsion Springs download - 1.69 MbMITCalcSprTors01.exe
|
| Keywords:
Spring, springs, cylindrical spring, torsion spring, spiral spring, EN 13906-2, DIN 2088, static strength check, dynamic strength check |
|
|
|
|
|
