Design of roller chain transmissions
|
MITCalc - Roller Chains Calculation 1.16
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $21.00
|
|
|
|
|
|

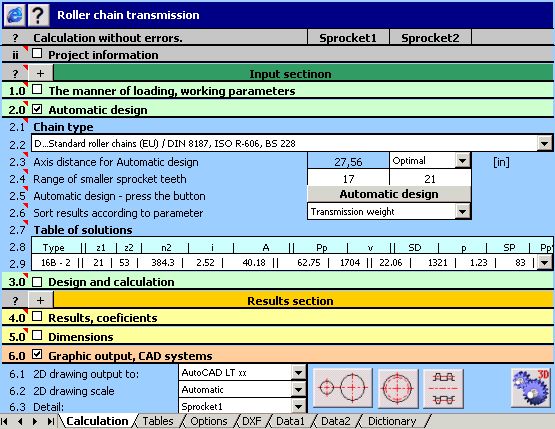

The calculation is designed for a geometrical design and strength check of common chain transmissions using roller
chains. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the
following tasks:
- Selection of a power suitable type of chain.
- Selection of an optimum transmission alternative regarding power, geometry and weight.
- Calculation of geometric, strength, safety and operational parameters.
- Calculation of power parameters and axis loads.
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
The application includes corresponding databases of roller chains. The calculations use data, procedures,
algorithms and data from ANSI/ASME, ACA (American Chain Association) ISO, DIN, BS and JIS.
Used standards: ANSI/ASME B29.1M (Dec2001), ANSI/ASME B29.3, DIN 8187, DIN 8181, DIN 8181, DIN 8164,
DIN 8150, ISO R606, ISO 1275, BS 228, JIS B1801, JIS B1803.This module is a part of MITCalc - Mechanical and
Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft
connection, tolerances and many others
|
Free MITCalc - Roller Chains Calculation download - 1.39 MbMITCalcChains01.exe
|
