Area characteristic of profiles
|
MITCalc - Profiles Calculation 1.16
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $18.00
|
|
|
|
|
|
The calculation solves area characteristics of profiles created in a simple graphic editor and mass characteristics of
solids created by extrusion or rotation of the profile. Application is developed in MS Excel, is multi-language,
supports Imperial and Metric units and solves the following tasks:

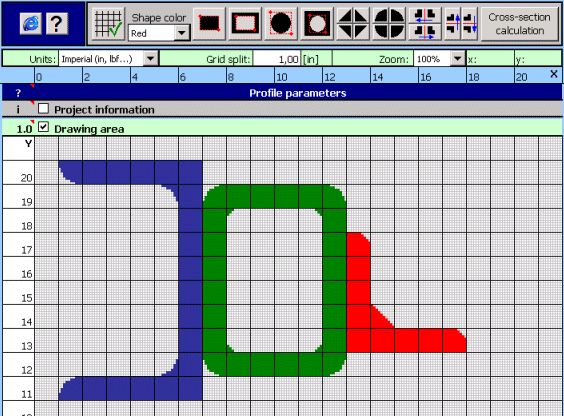

- Creation of a profile in a simple graphic editor.
- Calculation of area characteristics (Ix, Sx) for main axes passing through the centre of gravity.
- Calculation of area characteristics (Ix, Sx) for randomly turned axes passing through the centre of gravity, including
a graph.
- Calculation of characteristics for the turned axes which pass through a random point.
- Calculation of volume and mass characteristics (V, m, Im) of solids created by extrusion or rotation of the
profile.This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain
drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others
|
Free MITCalc - Profiles Calculation download - 1.32 MbMITCalcSections01.exe
|
| Keywords:
area characteristic, profile characteristic, mass characteristic, profile editor, profile design, graphics editor, profile extrusion, profile rotation |
|
|
|
|
|
