Calculations of the Straight Beams
|
MITCalc Straight beams calculation 1.21
Author:
Supported languages: English, Chinese, ChineseSimplified, ChineseTraditional, Czech, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovak, Spanish, Turkish
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $18.00
|
|
|
|
|
|
The application is designed for calculations of straight, maximum three times static indefinite beams with constant axis-symmetrical profiles. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks:
- Simple definition of the type of beam and its loading with visual check.
- Calculation of area characteristics of 20 types of cross sections.
- Calculation of reactions in supports.
- Calculation of minimum / maximum bending moment, stress and deflection of the beam.

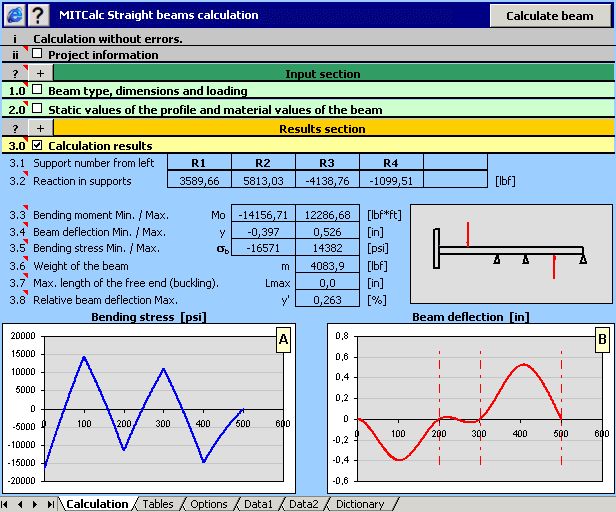

- Calculation and graphic illustration of the moment, stress, deflection and bending angle of the loaded beam.
The application includes a table of materials and a table of area characteristics of W, S, C, L profiles acc. to
ANSI/AISC and I, U, L a T profiles acc. to DIN/ISO.
Used standards: DIN 1025, 1026, 1028, 1029, 1024, AISC W, S, C, L, LU
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt
connection, shaft connection, tolerances and many others
|
Free MITCalc Straight beams calculation download - 1.85 MbMITCalcBeam01_64.exe
|
