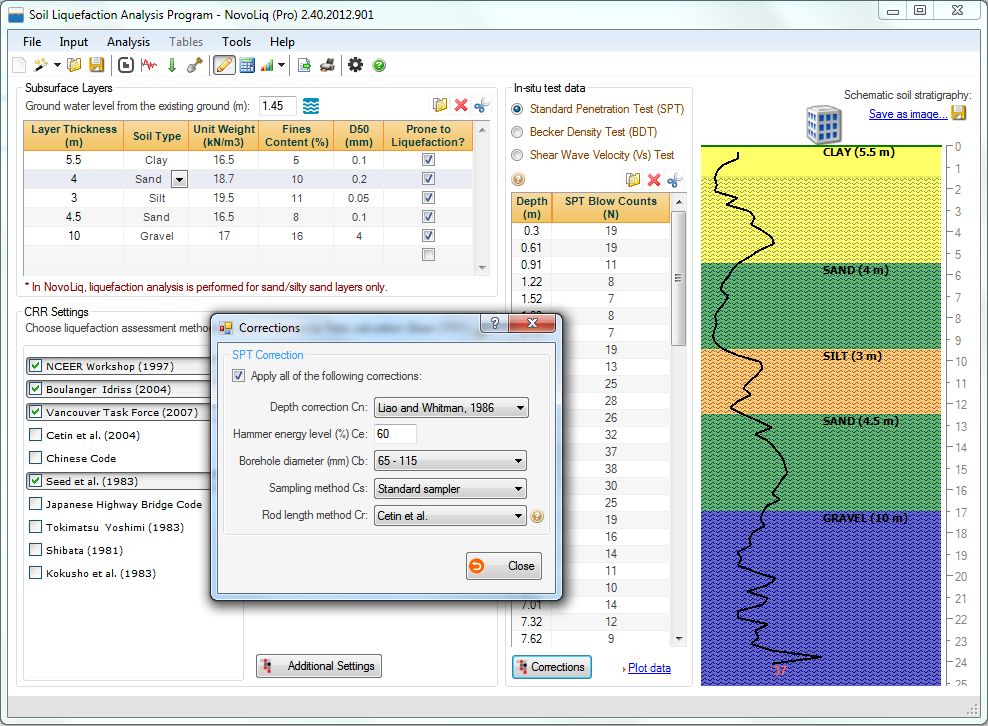

Soil liquefaction analysis program
|
Liquefaction Analysis Program (NovoLiq) 3.0
Author:
Supported languages: English
Supported OS: Win2000 / Win7 x32 / Win7 x64 / WinServer / WinVista / WinVista x64 / WinXP
Price: Free
|
|
|
|
|
|
NovoLiq is designed as a very flexible and comprehensive soil liquefaction analysis software which can compare more than 10 different methods. NovoLiq covers the following field tests:
-Standard Penetration Test (SPT)
-Becker Penetration Test (BPT)
-Shear Wave Velocity (Vs)
Soil resistance (CRR) is calculated based on:
-Japanese Bridge Code
-Chinese Code
-Seed et al. (1983)
-Tokimatsu-Yoshimi (1983)
-Shibata (1981)
-Kokusho et al. (1983)
-Vancouver Task Force (2007)
-NCEER Workshop (1996)
-University of California at Davis (2004)
-Cetin & Seed (2004)
Some other features:
-Unlimited soil layers
-Import from gINT, Winlog and Excel files
-Metric & Imperial units
-Lateral displacement and vertical settlements during liquefaction (6 methods)
-Effect of ground improvement on liquefaction
-Cyclic Resistance Ratio (10 methods)
-Probability of liquefaction (Youd and Noble / Cetin et al)
-Depth (overburden) correction factor (9 options)
-All other SPT/BPT/Vs corrections (>6 options)
-Direct conversion of Becker Density Test to SPT (2 methods, including friction effect)
-Magnitude Scaling Factor (8 options)
-Fines content correction (2 options)
-Depth Reduction Factor Rd (3 options)
-Relative Density (5 options)
-Very powerful report builder
-Export output tabular data as Microsoft Excel and graphic formats such as BMP, JPG, etc.
-Post-liquefaction lateral displacement and settlement based on different methods
Visit us at http://www.novotechsoftware.com/liquefaction/ for complete information.
|
Free Liquefaction Analysis Program (NovoLiq) download - 7.94 MbNovoLiq.zip
|
| Keywords:
Geotechnical software, Standard Penetration Test, soil Liquefaction |
|
|
|
|
|
