3D design of cast in place box culvert
|
GCULVERT Cast in place box culvert 1.2
Author:
Supported languages: English
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Windows Server 2000 / Windows Server 2003 / Windows Server 2008 / Windows Server 2008r2 / Windows Server 2012 / Windows Tablet PC Edition 2005 / Windows Media Center Edition 2005 / WinVista / Windows Vista Starter / Windows Vista Home Basic / Windows Vista Home Premium / Windows Vista Business / Windows Vista Enterprise / Window
Price: $259.00
|
|
|
|
|
|

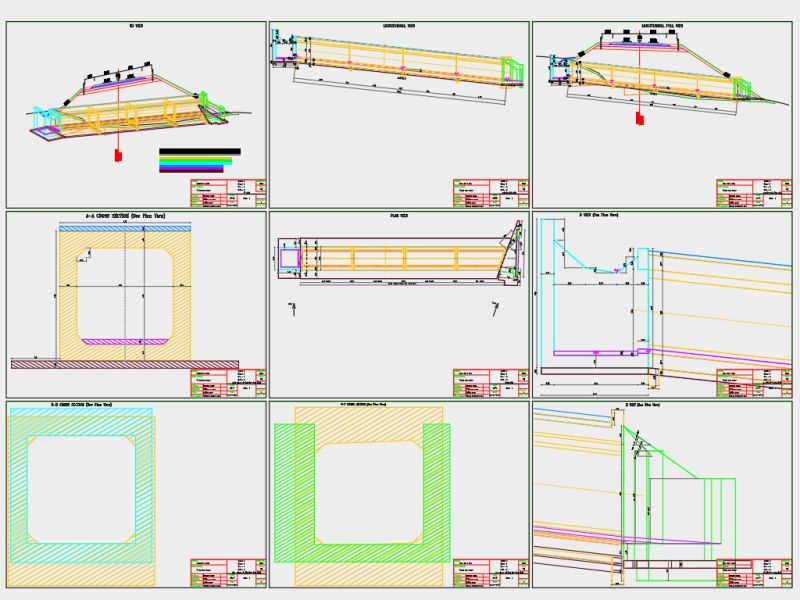

It automatically generates the construction drawings of the cast in place box or pipe culverts. The culvert consists of one or more rectangular frame pieces or pipes, 2 wings or a wing and a fall chamber. Rectangular pieces can be placed in steps to reduce the slope of the drain. The wings and the fall chamber can be at 90 degrees or at a different angle from the culvert axis. The walls of a wing can have different sizes and angles. The sole of the wing can be horizontal or inclined. The culvert rests on a foundation, and in the drainage area there is a concrete protection material.
The drawings are dimensioned automatically.
You will automatically get the execution drawings, quantity lists and files with the new input data. You will be able to create in time, a database with different examples of culverts.
|
Free GCULVERT Cast in place box culvert download - 1.7 MbGCulvert.zip
|
