3D reinforcement of concrete drilled piles
|
Drilled columns reinforcement 2.0
Author:
Supported languages: English
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Windows Server 2000 / Windows Server 2003 / Windows Server 2008 / Windows Server 2008r2 / Windows Server 2012 / Windows Tablet PC Edition 2005 / Windows Media Center Edition 2005 / WinVista / Windows Vista Starter / Windows Vista Home Basic / Windows Vista Home Premium / Windows Vista Business / Windows Vista Enterprise / Window
Price: $257.00
|
|
|
|
|
|

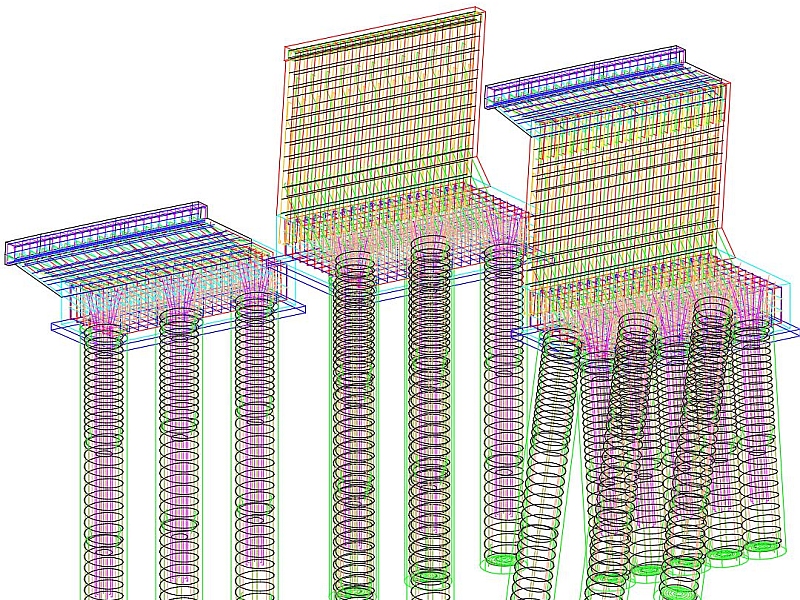

It automatically generates the construction drawings and the reinforcement extract for the 3D reinforcement of the drilled columns, foundation plate, corbel and/or the tympan. The foundation plate can be longitudinally and/or transversally rotated. The columns can be, on one row or on two, vertical or inclined. Concerning the foundation plate, there can be a corbel or a tympan. In the event that a tympan exists, a corbel can be connected to it. The longitudinal reinforcements from the columns can be on one row or on two (the rows are concentric). The ones with even numbers on the outer row can be shortened, and all the ones from the inner row can also be shortened.
|
Free Drilled columns reinforcement download - 9.34 MbRDrilled_columns.zip
|
| Keywords:
AutoCAD Add-ons, concrete piles, concrete reinforcement, BricsCAD plugin, reinforcement quantity list, drilled columns |
|
|
|
|
|
