An AutoCAD add-on for unfolded section.
|
DEVELOPED SECTION for AutoCAD 1.7
Author:
Supported languages: English
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $26.00
|
|
|
|
|
|

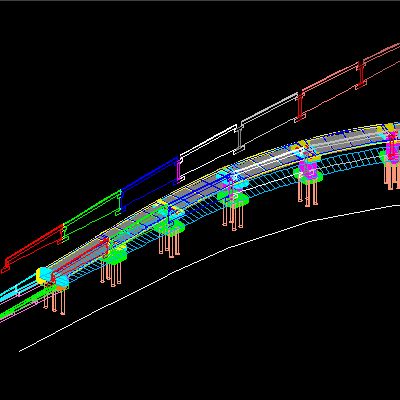

An add-on for AUTOCAD 2002-2018 or BricsCAD V15-V17, which determines the unfolded section of one set of 3DSOLID, 3DMESH or 3DFACE entities and vertical planes passing through a 2D POLYLINE which may contain arcs, in XOY plane. Developed section is generated in the vertical plane passing through first segment of POLYLINE. The intersection is generated in the form of 3DPOLY entities, colored from 1 to 1, beginning with the color 1, corresponding to every vertical plane. The result is automatically generated in viewports ready for printing. You can set also the "concatenation precision" of the segments of intersection.
The price is for the first license! You can buy anytime after, other licenses at a lower price!
|
Free DEVELOPED SECTION for AutoCAD download - 434 Kbdsect.zip
|
| Keywords:
Unfolded section, AutoCAD Add-ons, BricsCAD Add-ons, DEVELOPED SECTION, 3DFACE, 3DMESH, 3DSOLID |
|
|
|
|
|
