MacDraft is a 2D design and drafting tool.
|
MacDraft Professional 6.0
Author:
Supported languages: English
Supported OS: Mac OS X / Mac OS X 10.4 / Mac OS X 10.5
Price: $314.10
|
|
|
|
|
|

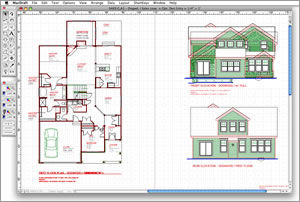

MacDraft is a 2D design, drafting and illustration tool. Designed for CAD users of all levels, MacDraft offers a full complement of drawing tools as well as both ANSI and international standard dimensioning capabilities. Powerful 2D design, drafting and technical illustration in one easy-to-use, affordable package. Designed for CAD users of all levels, MacDraft Professional offers a full complement of drawing tools as well as both ANSI and international standard dimensioning capabilities. Its multilayered, scaled drawing environment supports both feet/inches and metric dimensions. MacDraft provides powerful 2D design, drafting, technical illustration and more.
The Tool palette offers a full complement of drawing tools including lines, rectangles, circles, arcs, polygons, curves, parallel line and freehand tools. Parallel line and polygon tools make it easy to create exterior walls. Add interior walls with a mouse click using the parallel extrude tool. Some tools can be configured from the Tool Palette to provide several drawing options. For example, arcs can be drawn by their radius, any 3 points, or as an elliptical arc.
A fully scaled and layered environment, MacDraft offers it's users maximum control over their drawing setup, you can select from English or Metric units and work at your desired scale. Layers give you the ability to organize your drawings??”you could have your floorplan on one layer and your electrical schematics on another, then you can choose to hide them or show them as required.
A dimension tool for every occasion??”whether you need horizontal, vertical, diagonal, angular, perpendicular, radial or diameter dimensions, MacDraft's dimension palette is always on hand to provide them.
|
Free MacDraft Professional download - 32 MbMCSMacDraftPro6Trial.zip
|
