Network management integration with SCADA
|
SAEAUT SNMP OPC Server Basic 2.07.00
Author:
Supported languages: English, Slovak
Supported OS: WinXP / Windows2000 / Windows2003 / Windows Vista Business / Windows Vista Business x64
Price: $744.00
|
|
|
|
|
|
Solution for integration of the computer network management and data pre-processing with SCADA using OPC interface or Web Services
It has the following features:
- implemented OPC specifications:OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC Alarms and Events Version 1.1 and 1.0
- implemented protocols: SNMPv2c, SNMPv1
- using SNMP commands GET, SET and traps
- using ping to manage devices without running SNMP agent and displaying of round trip time as one OPC variable
- tags in address space of the OPC server are defined using MIB object identifier (Object ID), for example .1.3.6.1.4.1.2681.1.2.102; defined Object ID's can be validated by input in OPC configurator
- the possibility to manage max. 10 devices with running SNMP agent
- implementation of MIB Browser, which scans SNMP manageable device for its SNMP variables that correspond to MIB objects (in the basic version, browsed items can not be added to OPC address space)
- IP Scanner, which is used for scanning computer network communities in defined IP area
Installation package contains:

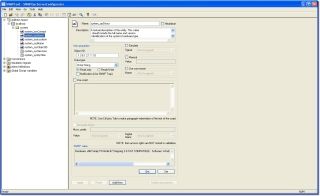

- SNMP OPC Server configurator
- runtime application (SNMP OPC Server process)
- OPC XML-DA wrapper
- source code examples for OPC test clients (written in VB6 and VB.NET) for the communication with SNMP OPC server, using OPC DA3 interface or Web Services
|
Free SAEAUT SNMP OPC Server Basic download - 9.92 Mbsnmp-opc-server-basic.zip
|
