Network management integration with SCADA
|
SAEAUT SNMP OPC Server Enhanced 2.08.01
Author:
Supported languages: English
Supported OS: WinXP / Windows2000 / Windows2003 / Windows Vista Business / Windows Vista Business x64
Price: $1540.00
|
|
|
|
|
|
Solution for integration of the computer network management and data pre-processing with SCADA, using OPC interface or Web Services
It has the following features:
- implemented OPC specifications:OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC Alarms and Events Version 1.1 and 1.0, OPC UA 1.1
- implemented protocols: SNMPv2c, SNMPv1
- using SNMP commands GET, SET and traps
- using ping to manage devices without running SNMP agent and displaying of round trip time as one OPC variable
- tags in address space of the OPC server are defined using MIB object identifier (Object ID), for example .1.3.6.1.4.1.2681.1.2.102; defined Object ID's can be validated by input in OPC configurator
- the possibility to manage unlimited number of devices with running SNMP agent
- pre-processing data using JScripts
- support of global JScript variables to enable for example implementation of historical data processing, filtration or other algorithms
- implementation of MIB Browser, which scans SNMP manageable device for its SNMP variables that correspond to MIB objects
- IP Scanner, which is used for scanning computer network communities in defined IP area
- logging of SAEAUT SNMP OPC Server activities to log-files
Installation package contains:

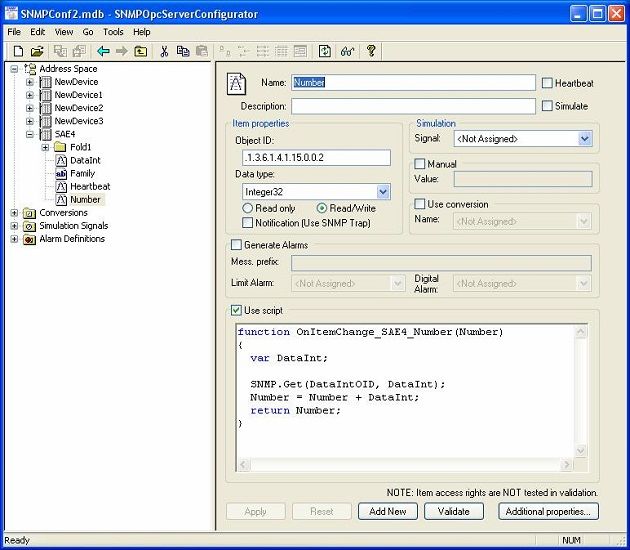

- SNMP OPC Server configurator with built in JScript editor
- runtime application (SNMP OPC Server process)
- OPC XML-DA wrapper
- source code examples for OPC test clients (written in VB6 and VB.NET) for the communication with SNMP OPC server, using OPC DA3 interface or Web Services
|
Free SAEAUT SNMP OPC Server Enhanced download - 22.94 Mbsnmp-opc-server.zip
|
